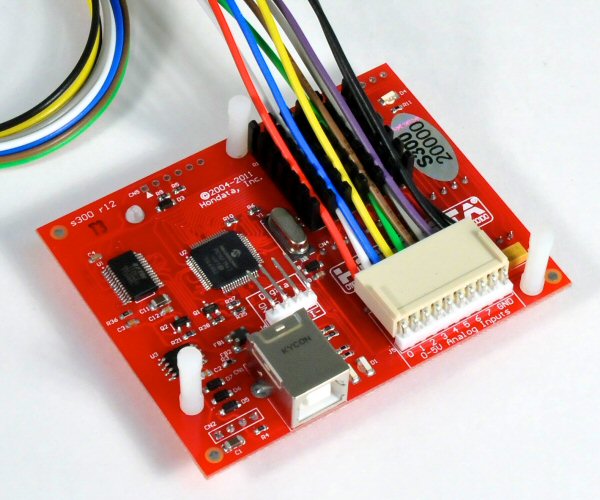

The analog input connector should be connected with the red wire on analog input 0, and the back wires to ground.
Warning:
The ground pins on the analog input connector are connected directly to the ECU ground plane. The ECU will be damaged if power is applied to these pins.
S300v2 (red) and S300v3(white) analog input wiring
Pin |
Wire Color |
Analog 0 |
Red |
Analog 1 |
White |
Analog 2 |
Blue |
Analog 3 |
Yellow |
Analog 4 |
Green |
Analog 5 |
Brown |
Analog 6 |
Grey |
Analog 7 |
Purple |
Ground |
Black |
Ground |
Black |
